Identify these engines!

[deevergote]

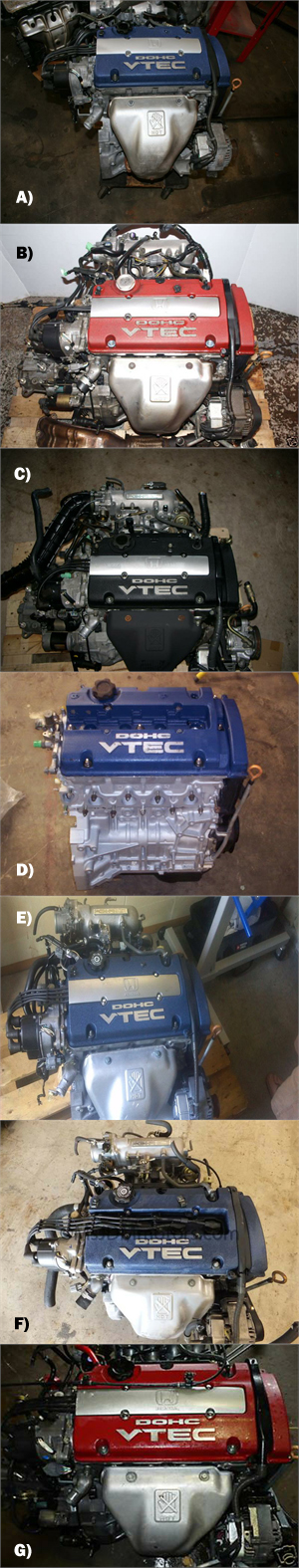

I'm putting this in OT since it's not really technical. More like a game for Accord enthusiasts who know their DOHC VTEC engines.

This was inspired by people that tell me they want to swap in an H23A or F20B to be "different"... I want to see how many people can actually tell the difference by sight alone!
I'm not cracking on anyone with an F20B or H23A. I'm just curious to see who can tell these apart!

[Accrdwgnguy]

Well, they all look the same to me!

[Jarrett]

A) 2000-2001 H23A VTEC - The intake manifold gives it away. It's the manifold that's compatible with the PDE head.

B) H22A Euro R engine - Again, the intake manifold.

C) OBD1 JDM H22A - Once again, the intake manifold gives it away. The JDM H22A does not use any air boost valve. The OBD1 model uses a block-off plate and the OBD2 just deletes it with a small nipple protruding from it. This has a block-off plate.

D) My best guess is that it's just an H22A that has a blue valve cover. The double-row pulley makes me think that this is the case. Really, it could be anything.

E) '97-'01 F20B (manual transmission) - This is only the case if my eyes are not deceiving me and that is, in fact, a 2-wire IACV. If not, then see F.

F) Either '97-'01 F20B (automatic transmission) or '98-'99 H23A VTEC - Looks to have the 3-wire IACV making it a surefire auto-equipped car.

G) H22A Euro R - You can't see the intake clearly, but it doesn't appear to be the standard H22A dual-runner manifold.

[deevergote]

Very close... close enough that I wonder if the source of those pictures was mistaken...

B and C are SLIGHTLY off... if you're not wrong, then I am!

[Jarrett]

I'm fairly sure those are correct. Even the lack of external coil, and P39 power steering pump on C further reinforce that it's a JDM and OBD1 engine.

Now, what could also be true is that some of these importers swap things around to sell them differently. The H23A VTEC never came as a manual transmission-equipped engine. But, you can buy them that way from importers because that helps them sell. They'll just swap parts around from different engines to get what they want. That doesn't seem to be what's done here, though.

Why, what do you know about them?

[TheFunk]

Pretty impressed with Jarrett's (educated) guesses.

If you told me they were all H22a with different painted covers I'd probably believe you.

[deevergote]

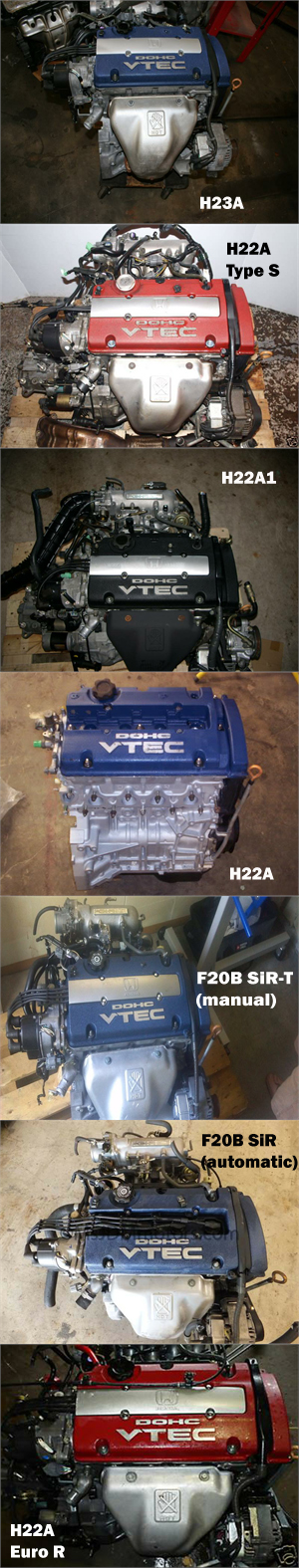

http://www.cb7tuner.com/Delete/Final_Marked.jpg

That's the answer key, as they were listed in my image search. I could be wrong, as your eye for detail is far better than mine!

[Jarrett]

The key is wrong. The one it calls "Type S" does not have the ATTS transmission as all Type-S H22As had. The closest thing without the ATTS would be the Prelude S-Spec. It was essentially the 220 ps engine without the ATTS and some of the other interior goodies that the Type S got. It also has the Euro R/H22A7 intake manifold on it. Also, the H22A1 was only ever offered in the US and Canada. That means that it would have an external coil. That engine does not. It also has the air boost valve blocked off. That would mean that the plenum was swapped with an OBD1 JDM H22A at the very least.

[deevergote]

I tried looking for the external coil on the "H22A1". I wasn't able to tell one way or another.
Man you're good!

[Stoner51]

I can't tell a damn thing from the itty bitty pics.

steve

[sonikaccord]

Pretty colors!!

That's all I see

[illinois_erik]

Theyre vtech!

[cb7 calling]

4 cylinders, where do I collect my prize? Seriously though Jerrett cheated with his brain and should be disqualified. Put Jarrets description next to the corresponding pictures and call it a sticky.

[Honda_Lady]

I can't tell a damn thing from the itty bitty pics.

steve

That was exactly my thoughts and they were even smaller on FB.......I am seriously impressed with Jarrett though, wow!

[GenDBlade]

haha, i legit, didnt know any of these. all ive ever messed with were non vtec F and H series and non vtec B series.


seems to be a theme in my life.
